KONNWEI KW902 ELM327 OBD Mini BT Code Reader Auto Scanner Car Diagnostic Tool
$15.98
• No sales tax out of California
• Ship from California
• Return policy:30 days returns • Delivered In 3-5 business days
With KW902 you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations. KW902 scan tool is a high-quality automotive scanning tool, supports all OBD-II protocols：.
Privacy policy
Delivery policy
30 Days Return
Category:eBay Motors|Automotive Tools & Supplies|Diagnostic Service Tools|Code Readers & Scanners
Functions:

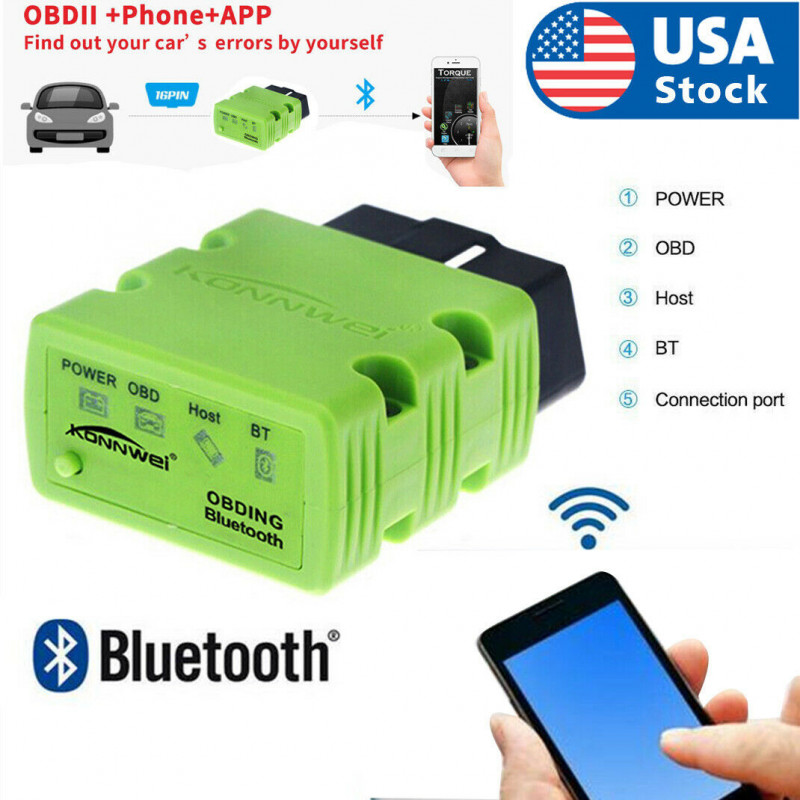

The device is a small adapter that plugged into the vehicle OBD-connector. On Bluetooth, it connects to computer, tablet or smartphone with associated diagnostic procedures.
1. Read, erase and display code descriptions problems - both standard and spetskodov manufacturers.
2. Measure the fuel consumption.
3. Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.
4. Turn off the MIL (signal Check Engine).
5. Download data to external media in a variety of formats for later printing.
6. Record various parameters, display graphics in real time, and more.
With KW902 you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.
Specification:
Color: Green
Supply voltage(VDD): 12V
Work temperature range: -20 ~ +70℃
Storage temperature range: -40 ~ +125℃
RF sensitivity(Basic Rate): -85db
Modulation Mode: GFSK
Frequency Range: 2402 ~ 2480MHZ
Transmission Range: 10M
Bluetooth Profile: SPP
UART Params: 38400,8,n,1
Protocols:
KW902 scan tool is a high-quality automotive scanning tool, supports all OBD-II protocols：
0.Automatic
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)
